Optical Loss Tester

PRODUCT > JGR Optics

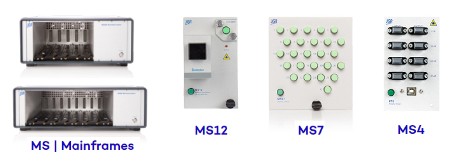

MS | Mainframes

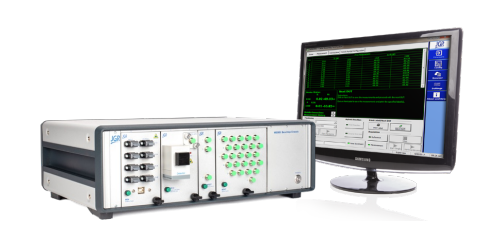

The modular units of the Cable Assembly Test System can be powered using the MS05B/MS08B benchtop mainframes or the MS10R rackmount mainframe along with a customizable external computer*. The MS mainframes communicate to a computer via an included PCI card running on Windows 10, Windows 8, or Windows 7.

The MS mainframes allow for both single-mode and multimode insertion loss and return loss testing within a single station. Different modular configurations can be set up for testing up to four wavelengths. Pairing an MS12 with an MS7 Optical Switch allows for multi-fiber testing in the single mainframe. Cascading mainframes or pairing with an external SX8 switch allows for higher channel count testing requirements.


MS12 | Return Loss Module

The MS12 Return Loss Module combines advanced time-domain technology with a built in unique wide aperture integrating cavity. An internal monitoring feature maintains laser stability for reliable insertion loss testing throughout an entire working day. The internal return loss reference helps with highly accurate multimode and single-mode return loss measurement performance. The multimode MS12 Return Loss Meters meet IEC-61280-4-1 Encircled Flux Standard.

MS7 | Optical Switch Module
The MS7 optical switches are available in a variety of configurations from 2x2, 1x2 to 1x72 for both single-mode and multimode fibers. They provide the flexibility required to configure the MS12001 system to support various applications like multiwavelength testing, multifiber connector testing or high-throughput configurations.

The MS7 modular optical switches provide high performance at a reasonable cost and are exclusive to JGR for use in the MS12001 cable assembly and component test system.

MS4 | Polarity Test Module
The MS4 Polarity Tester is a user-friendly module specifically designed to check the polarity of multi-fiber cables. The MS4 can significantly improve throughput in a production environment where the possibility of process errors demands an efficient method to test and confirm the correct polarity.

The MS4 supports testing of up to 48 fiber single-mode and multimode ribbon cables. Intuitive software quickly displays PASS/FAIL results for any ribbon configuration including type A, B, C, D and custom profiles.

The MS4 can be paired with an MS12 Return Loss module inside one of the MS Mainframes to provide IL, RL & Polarity results in a single station using the MS12001 software.
